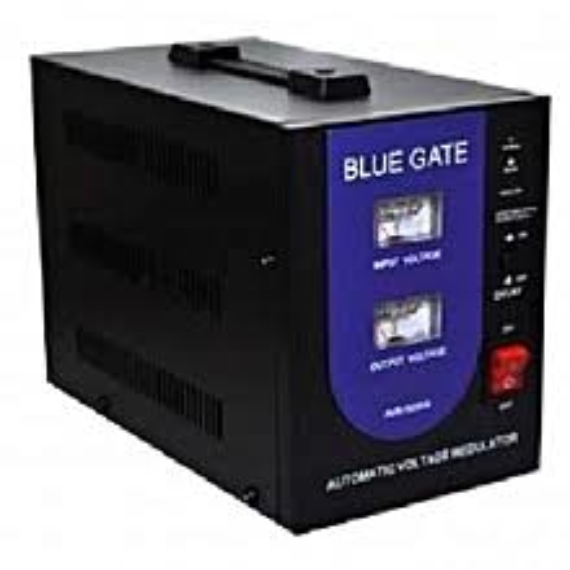

This AVR-series uses advanced control technology made with reliable components. It is a new type of AC automatic regulator with automatic control system. It has the features of wide input voltage range, high reliability, better stabilized output voltage, energy saving, etc.

It can be used to supply stabilized power to lights, Television, air-conditioner, refrigerator, computer and duplicating machine and other household equipment; School, Office, Hotel, etc

Features

Wide input voltage range (Super Low model also available)
Over-voltage, Low-voltage, delayed output, short circuit and High temperature protection
Classic series, EI transformer, relay type
Input and output voltage meter display
Circuit breaker
Efficiency: 98%
VA Rating 5000VA
INPUT

Phase: Single phase + N+ GND
Voltage Range: 100VAC-260VAC (Super low voltage range also available)
OUTPUT

Voltage Range: 200-240V(Empty load)
Frequency: 50/60Hz
Over voltage protection: 250V+5V (Over voltage indicator lights without output
Under-voltage protection: 100V+5V (Under-voltage indicator lights without output)(not applicable to super low options)

SYSTEM

Efficiency: ?95%
Display Mode: LED indicator light; Pointer voltmeter/LCD display
Input/Output setting: Plug/Socket
Wave Distortion: No additional waveform distortion
Insulation Resistance: >2M
Dielectric Strength: Low frequency sine voltage 1500V for 1minute (without phenomena of breakdown and flashover)
Ambient Temperature: -10degreeC – 40degreeC
Relative Humidity: 95%
Working: continuous

OTHERS

Dimension (DxWxH)mm: 285x140x200
Net weight (kg): 7.45
Packing Dimension(DxWxH)mm: 330x215x260
Gross weight (kg):7.95
